How To Remove Rear Bumper - '07-'11

How to disassemble/reassemble the rear bumper

How To Remove Rear Bumper - '07-'11

Postby HammerDown [OP] » Jul 19 2011, 5:25pm

I had to do a little bodywork on the rear of the bed, near the tailpipe, due to paint chips (no mudflaps!) and decided it would be easier to sand and paint if the bumper was off. I took a few pics as I put it back together and I thought others might like to see how easy (or not) it was in case anyone else needed to do it.

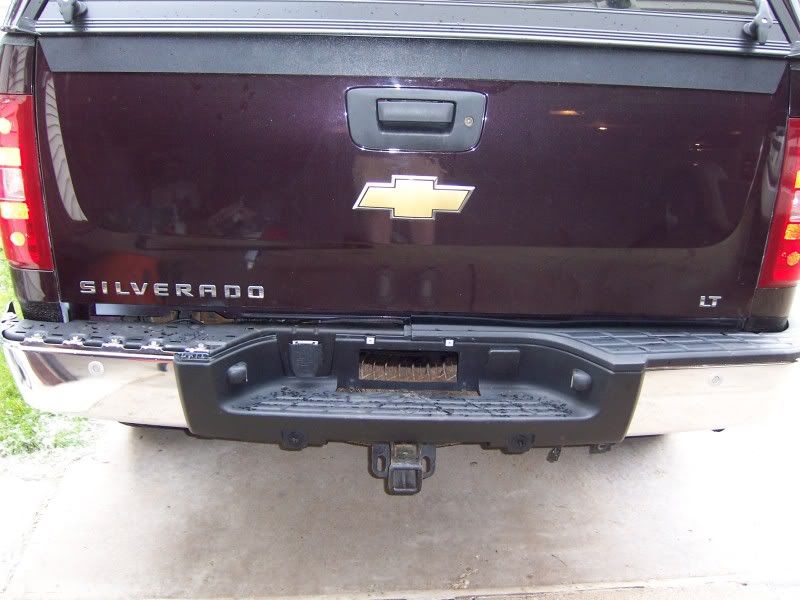

Step 1: Use a putty knife and your fingers to pry up the top plastic piece on the driver's side. It will pull right off and you won't break anything. Note: There is a push type plastic retainer on the underside where the plastic wraps around the side of the metal bumper. Use a needle-nose and screwdriver to punch it out.

Step 2: Same thing on the passenger side.

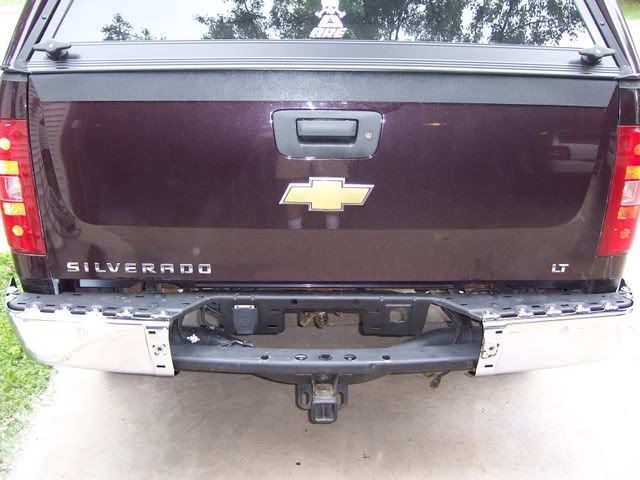

Step 3: To get the middle plastic piece out, you will need to drop the spare tire and remove your license plate. The license plate lights twist apart just like you're changing the bulbs. You don't have to touch the 7-pin trailer plug as it is attached to the metal frame. The tricky part of this whole operation is getting the tube for the spare tire lift removed. I ended up cutting the retainer clip on the backside to get it apart. It is a round metal piece surrounded by teeth in the middle that can be pushed on but not pulled off without cutting. Note: you don't have to take this middle piece of plastic off to take the bumper off. I did it so I could sand and repaint the metal frame underneath. If you do take this piece off, there are a couple push type retainer clips underneath and a bolt and nut on each side underneath. You'll see all of this as you lay under there.

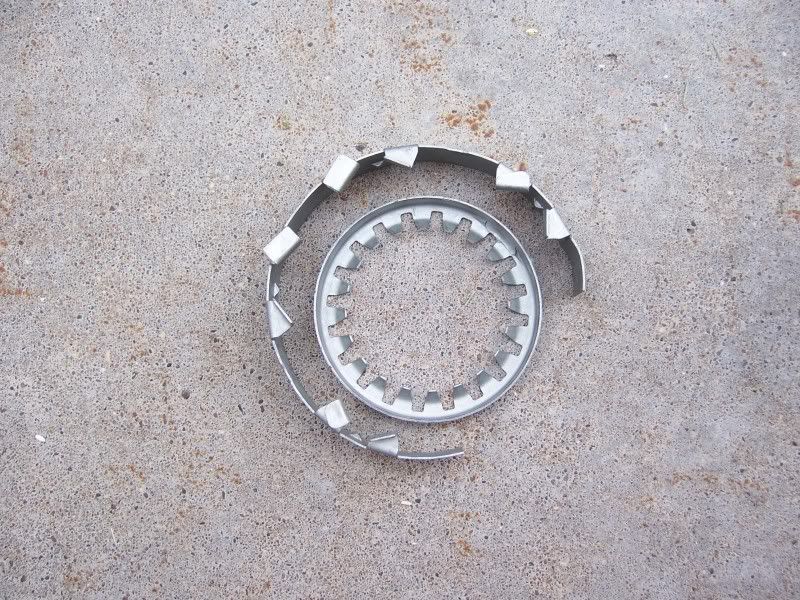

This is the replacement retainer clip I ended up buying from the dealership so I could put it back together the right way. I'm sure you could use a band clamp or something else. These 2 pieces cost me $35 plus tax.

Step 4: Grab a drill and a small bit and drill out the rivets that hold the two metal end-caps on. Note: If you have the parking assist detectors on your bumper like I do, you will need to pull the four of those out from the backside of the bumper. A small screwdriver will help pull them loose. I pulled the plugs/wires first and then pulled the sensor out of the bumper when I had it off and could get a better look at it.
(I ended up driving it this way for a few days, thus the reason I mounted my license plate to the frame.)

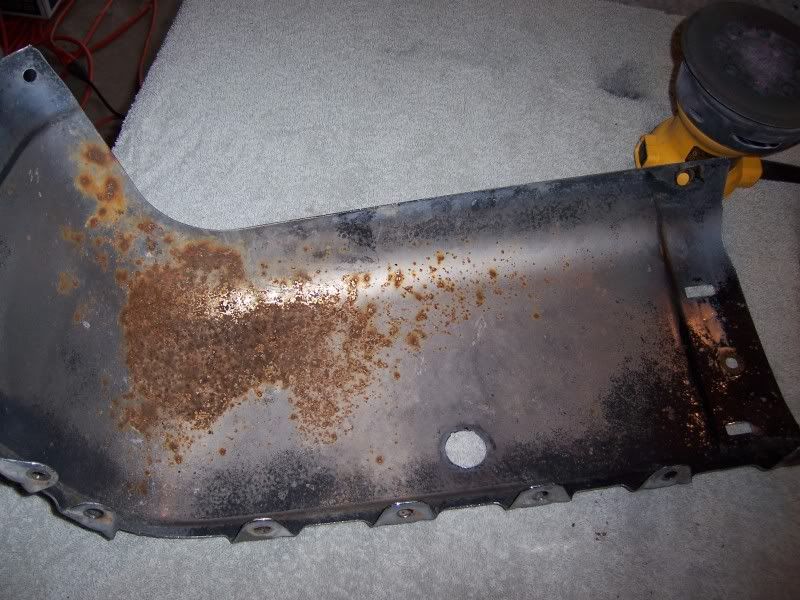

This is what the backside of the metal endcaps looked like. Suffice to say I sanded, primed, and coated them with rubber undercoating before re-mounting them.

Step 5: There are 3 large bolts on each side (look for the rusty ones in the pic above - 2 on top and 1 on bottom) that will remove the metal frame. Here's another pic of the 3 bolts:
Before you pull it off, pull the wire looms free from the frame as they are attached to this part. You will also have to twist the 7-pin trailer plug out. Pull the wires off on the back, twist the front flap and pull it out the front. Once this metal frame piece is off, you're pile of parts should look like this:
They sure don't make 'em like they used to. Looking at all these flimsy little pieces makes you wonder what good the bumper would do in an accident.

Putting it all back together is the reverse of taking it apart. I used stainless bolts and fender washers (you may be able to see them in the 2nd picture since I took the pics as I put it back together). In hindsight, with the cost of stainless bolts, I would have just used some galvanized stuff instead. Like I said, the only tricky part is getting the tube for the spare tire removal unit separated. Everything else was cake. When I put it back together, I thought for a brief moment about using my Dremel to cut around the plastic flap of the lock cover for the spare tire removal tube so I didn't have to go through this again.

That's pretty much it. Let me know what you think, or if this helps.
