How to Fix the Play in Power Seat Tracks

for 99-02 maybe works for other years
Forum rules
This is just a friendly reminder that the "How To" forum is not a place to ask questions or ask for help. What this means is it's not the place to request a "How To". This forum is meant only for members who wish to post the specific steps to complete a project or modification of some sort. All posts in here are put up for all to read and gain information on how to do something to their silverado or sierra. Please only post in this section if you have directions on how to do a modification, complete a task, or steps to take to resolve a problem. Thanks!

How to Fix the Play in Power Seat Tracks

Postby 99SierraZ71 [OP] » Jan 16 2011, 5:15pm

If you read my other post you know I followed someone else write up on how to do this. It was definitely helpful, but had some unnecessary steps.

Excuse the condition of the carpet. While the seats were out I cleaned the whole truck and shampooed the carpet. It's now spotless.

First remove the seat.
Front bolts are 15mm.

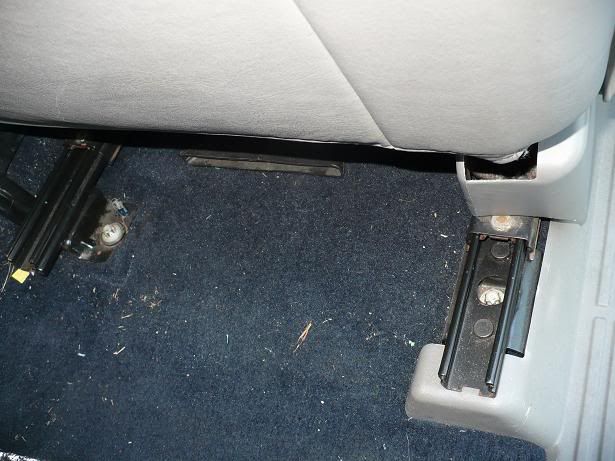

Rear bolts are 11mm

Then take the seat and turn it upside down leaving it plugged in so you can move the track back & forth. I supported the head rest with a step stool.

In the write up I got from another site it said to grind off the so called seat stops. I did it on the first one, but tried it without grinding on the second one and it worked fine so this isn't necessary
So called seat stops. I don't think they are seat stop. My seat still stops in the same spot without them.
Before grinding

After grinding

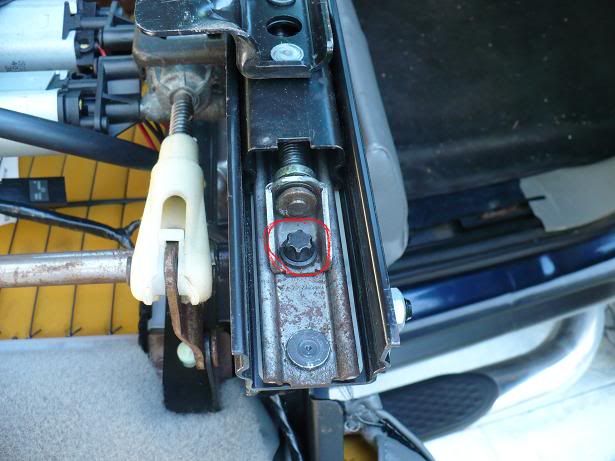

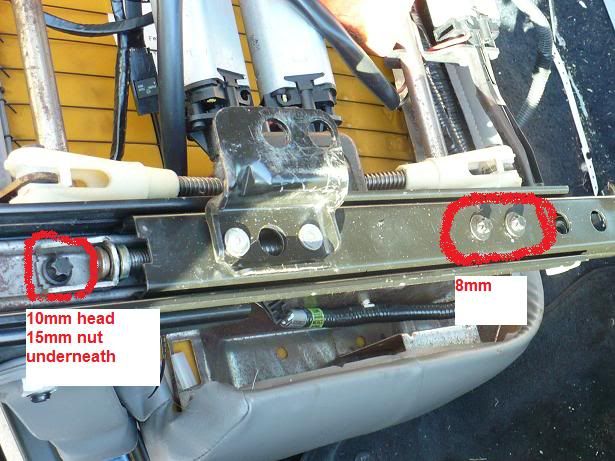

Next slide the track all the way forward and remove the bolt that hold the screw drive in place. It's 10mm on top & 15mm nut on bottom. On one side you can get the nut from the rear. On the other side you have to go through a hole on the side of the track. Sorry I didn't take a picture of the side access, but it's pretty easy to see.

Then remove the two 8mm bolts that attach the slide to the seat track.

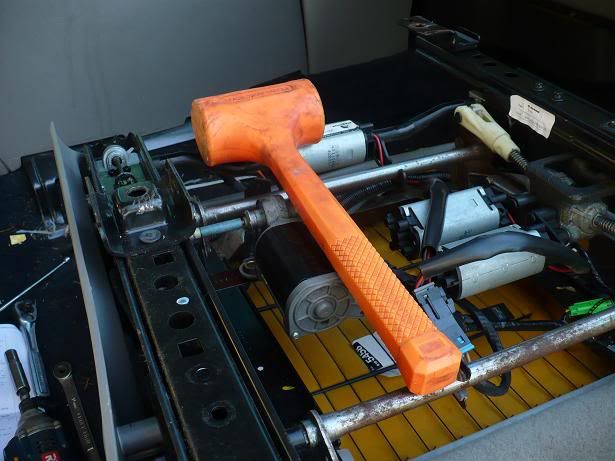

Then pull the slide rod assembly out. You will have to slide the seat track back at the same time because it doesn't clear some of the protruding bolt on the track. One of them I had to use a mallet to get it to move far enough. The rest slide easily by hand. You will see plastic ball bearings on each side of the track. They are in the front & rear. Make sure you don't slide it back too far so they don't come out. If they do come out they are easily reinstalled as long as you don't loose them.

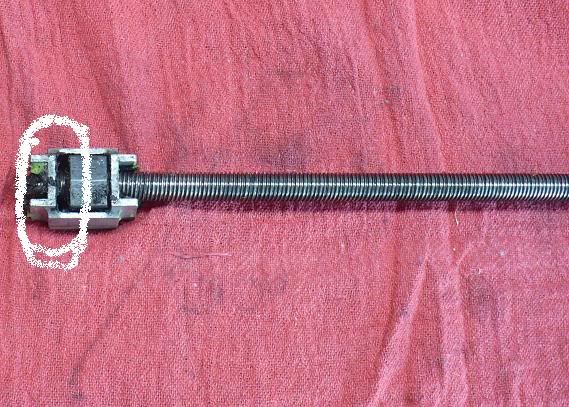

Here is the slide rod assembly after removal. See the gap where the old bushing deteriorated?



The write up I was going by used washers to fill the gap where the factory bushing was. That was my original plan. I have a lot accumulated a lot of stuff over the past 20 years in my house. While searching for some washers to use I came across some old hard plastic ATV A-Arm bushings and decided to use them instead. I had to cut it down and enlarge the whole a little. They worked out perfectly.

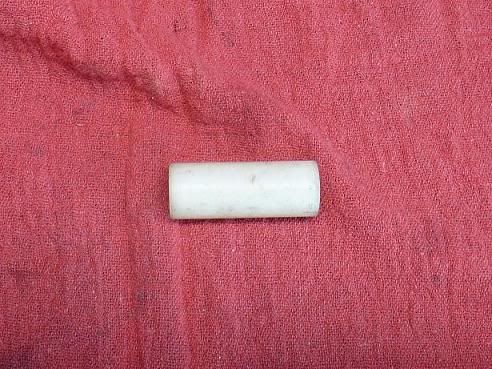

Before I cut it up

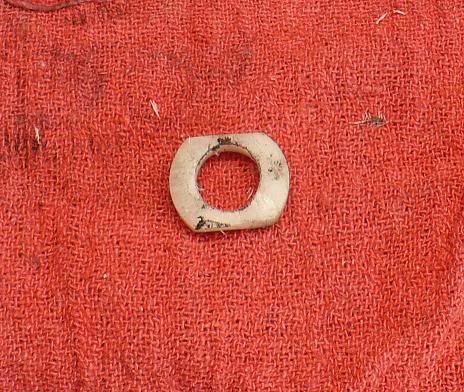

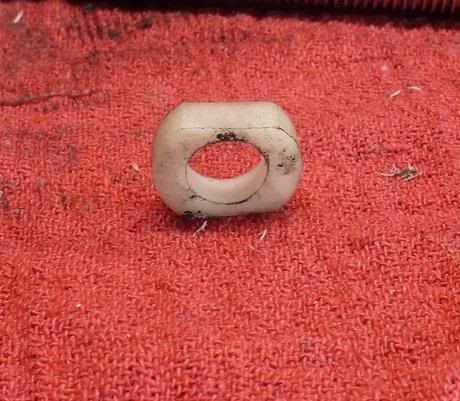

Here is the bushing ready to install.

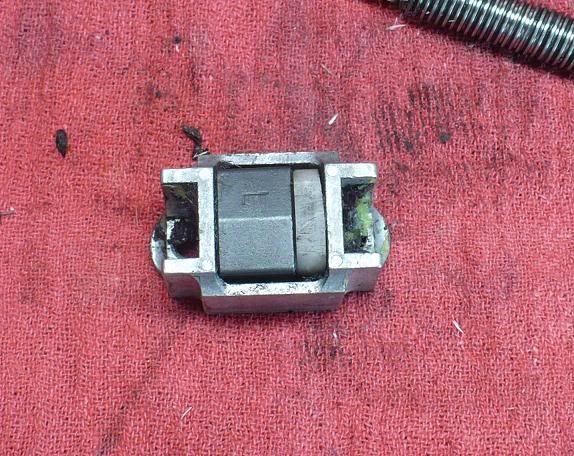

Here is the slider with bushing installed.

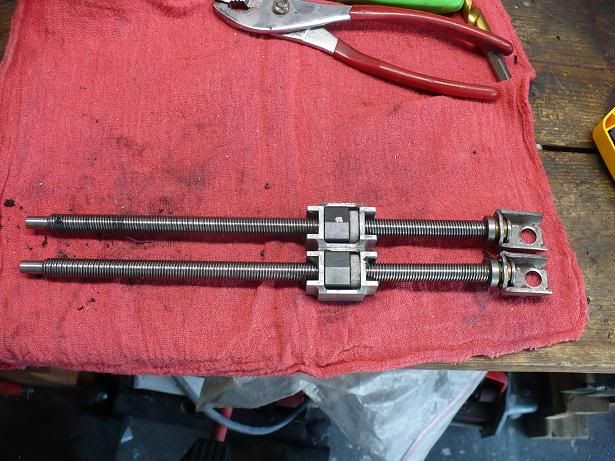

Here is the pair ready for reassembly. Not the position of where the slider is. This was the best position when reinstalled. Make sure they are equal so the track is straight.

I used a pair of needle nose pliers to slightly rotate the slide bolt to get it to line back up with the cable that drives it. It's driven by something similar to a speedo cable.

Next bolt the slide rod assembly back in place with the 11mm bolt & 15mm nut. Then slide the seat tracks to line up with the sled block and install the two 8mm bolts.
That's it you just fixed the play in your seats.
Original Poster
99SierraZ71
Firing on 1 cylinder [L1]
Firing on 1 cylinder [L1]
Posts: 18
Topics: 4
Blogs: 0
Joined: Jan 13 2011, 2:53am
Years of membership: 3 years of membership3 years of membership3 years of membership
Location: South Florida
Year: 1999
Make/Model: GMC Sierra
Group Membership:
How-to Authors
Registered users
Related Topics  Plug and play 02 does it have it,manual to power   How do I fix the underside of my driver's seat?   Track N go tracks?   dead power seat   power seat switch/module   power seat adjustment problem   Power Driver's Seat Issues   Power driver seat reclined and will not come back up   Drivers power seat not workin...2001 Silverado   2011 GMC Sierra 1500 6-way power seat track replacement   Steering play in wheel   iPhone Auto play?   Steering wheel play   Plug and Play radio upgrade
How-To Articles Sponsor
Advance Auto - Free Shipping on Orders Over $75!
SilveradoSierra.com members get $50 Off Orders Over $200 At Advance Auto Parts.
Use Code BIG50 At Checkout. Limited Time Only - Shop Now!

Re: How to Fix the Play in Power Seat Tracks

Postby lzn197lzn197 is online! » Jan 28 2011, 2:50pm

Great work. Thanks for sharing.
Gordon
2004 Chevrolet Silverado Extended Cab Z71
Semi-retired Master Mechanic
User avatar
lzn197lzn197 is online!
ASE Certified
ASE Certified
4x4 Low Mode [L3]
4x4 Low Mode [L3]
Posts: 1778
Topics: 6
Images: 21
Blogs: 16
Joined: Apr 01 2010, 3:45pm
Years of membership: 4 years of membership4 years of membership4 years of membership4 years of membership
Location: Central Michigan
Year: 2004
Make/Model: Chevrolet Silverado
Extra Info: K1500 5.3L Z71 EX
Group Membership:
Automotive Technicians
Registered users

Re: How to Fix the Play in Power Seat Tracks

Postby In2Trux » Jan 28 2011, 2:55pm

NICE This will come in handy
User avatar
In2Trux
Combustion on 3 pistons [L2]
Combustion on 3 pistons [L2]
Posts: 378
Topics: 32
Images: 37
Blogs: 3
Joined: Oct 20 2010, 2:31pm
Years of membership: 3 years of membership3 years of membership3 years of membership
Location: North Bay Ont
Year: 2007
Make/Model: Chevrolet Silverado
Extra Info: 2500HD Duramax
Group Membership:
How-to Authors
Registered users

Re: How to Fix the Play in Power Seat Tracks

Postby 6.0gmt800 » Apr 06 2011, 5:51am

I had this same problem on my 2000 Sierra. A guy on Ebay is selling replacement bushings with instructions for $15. Took me about 4 hours to do both seats and eliminated all the slop in the track. You can find it by typing in GM Power Seat Unwanted Movement/Play Repair kit on Ebay. Hope that helps-
6.0gmt800
Newbie
Newbie
Posts: 6
Blogs: 0
Joined: Mar 14 2011, 2:51am
Years of membership: 3 years of membership3 years of membership3 years of membership
Location: Northern MN
Year: 2000
Make/Model: GMC Sierra
Extra Info: 6.0
Group Membership:
Registered users

Re: How to Fix the Play in Power Seat Tracks

Postby starspangled6.0 » Apr 07 2011, 2:38pm

Is this a progressive issue? I've got slop in both the front seats, but it doesn't really bother me enough to fix it. It feels like it moves about half to one inch. If it does get worse, I may have to tackle it...
07 Silverado 3500HD 6.6L Crew Cab Dually
04 Silverado 2500HD 6.6L Extended Cab w\Hiniker 8.5 V
03 Sierra 2500HD 6.0L Extended Cab w\BOSS 8.2' V


http://www.integrityoutdoor.biz
User avatar
starspangled6.0
Shifting into Sixth Gear! [L3]
Shifting into Sixth Gear! [L3]
Posts: 6220
Topics: 304
Images: 57
Blogs: 46
Joined: Nov 08 2010, 9:38pm
Years of membership: 3 years of membership3 years of membership3 years of membership
Location: Minnesota
Year: 2007
Make/Model: Chevrolet Silverado
Extra Info: 3500HD 6.6L Duramax
Group Membership:
Registered users

Re: How to Fix the Play in Power Seat Tracks

Postby 6.0gmt800 » Apr 10 2011, 3:28am

It wont get much worse than what your experiencing starspangled6.0, once the rubber bushing is gone thats about as bad as it gets, really annoying though, and cant be good on the screw or block assembly.
6.0gmt800
Newbie
Newbie
Posts: 6
Blogs: 0
Joined: Mar 14 2011, 2:51am
Years of membership: 3 years of membership3 years of membership3 years of membership
Location: Northern MN
Year: 2000
Make/Model: GMC Sierra
Extra Info: 6.0
Group Membership:
Registered users

Re: How to Fix the Play in Power Seat Tracks

Postby starspangled6.0 » Apr 10 2011, 12:46pm

Thanks, 6.0GM! That's good news...
07 Silverado 3500HD 6.6L Crew Cab Dually
04 Silverado 2500HD 6.6L Extended Cab w\Hiniker 8.5 V
03 Sierra 2500HD 6.0L Extended Cab w\BOSS 8.2' V


http://www.integrityoutdoor.biz
User avatar
starspangled6.0
Shifting into Sixth Gear! [L3]
Shifting into Sixth Gear! [L3]
Posts: 6220
Topics: 304
Images: 57
Blogs: 46
Joined: Nov 08 2010, 9:38pm
Years of membership: 3 years of membership3 years of membership3 years of membership
Location: Minnesota
Year: 2007
Make/Model: Chevrolet Silverado
Extra Info: 3500HD 6.6L Duramax
Group Membership:
Registered users

Re: How to Fix the Play in Power Seat Tracks

Postby Chasmanian » Sep 19 2011, 2:54am

Great write up, my 99 is a little loose on the passenger side. Time to fix it.
2014 Silverado, 2500 HD Duramax 4x4 Z71
5% Tint, 7.5 inch Rough Country lift, Gear Alloy Big Block wheels 20x10 with Cooper STT 35x12.50

Buying things I don't need to impress people I don't know.
User avatar
Chasmanian
Shifting into Fourth Gear [L3]
Shifting into Fourth Gear [L3]
Posts: 1471
Topics: 120
Images: 19
Blogs: 7
Joined: Jan 31 2011, 7:48pm
Years of membership: 3 years of membership3 years of membership3 years of membership
Location: Oklahoma
Year: 2014
Make/Model: Chevrolet Silverado
Extra Info: HD 2500 Duramax
Group Membership:
How-to Authors
Registered users

Re: How to Fix the Play in Power Seat Tracks

Postby skatcsi » Jan 12 2013, 11:49pm

I realize you posted this a couple of years back, but I would like to know what was the outside and inside diameter of the bushings that you made. I am trying to find some nylon tubing to get this done on my truck. Thanks.
skatcsi
Newbie
Newbie
Posts: 1
Blogs: 0
Joined: Jan 12 2013, 11:34pm
Years of membership: 1 year of membership
Location: Oahu, HI
Year: 2000
Make/Model: ...Not an owner
Group Membership:
Registered users

Re: How to Fix the Play in Power Seat Tracks

Postby Darin310 » Mar 26 2013, 1:03am

Check out this link for the bushings and you can do a search for the install video on youtube. http://www.ebay.com/itm/GM-CHEVY-SILVER ... 2b&vxp=mtr
